I could not upload my sketch up draft to GoogleWarehouse because the file was too large. I tried to upload it to Filefront but again I couldn't becuase we can not upload more than one GB in less than 10 hours. So I will try to upload it to filefront later.

Exp3 Final Images

This building is designed for Obama and Madonna with the concept of power.The two offices for each of them are placed in two opposit sides of the complex with different sectional levels and are connected to the meeting space which is placed at the top of the building via elevators. Madonna's elevator is the shard shape elevator and Obama's elevator is waiting on the other side.These elevators take each one to the lower level in their offices.

Design Process

This image shows the design process from where the main curved lines were inspired.

36 Movement textures

Two point perspectives (H shape)

One point perspectives (F shape)

EXP 3

link to Filefront

This is the link for the Model Game in filefront.
http://files.filefront.com/DM+ARCH1101+NOOSHIN+JOZANut2/;13706550;/fileinfo.html

A few more images....

In these views you are standing in Campbell’s lab.

In this view the meeting place, Nobel’s stairs and his lab area can be seen.

This image is the bird view of the whole model.

The stairs down to the Campbell's lab area can be seen here as well as the back view of the Nobel’s stairs.

This is a view of the Campbell’s stairs that leads us to the meeting space in upper level.

Model Views

This is a view of the meeting space which is connected to clients’ labs via two sets of stairs. The stair in right hand side is the way to Nobel’s lab and the stair in left hand side is taking us to Campbell’s lab.

Main Idea of Model

Draft model


This is the drawing which my main model is based on.
My ideas came from the quotes of Nobel and Campbell.

EXP2 36 Custom Textures (Drak to Light)

EXP2 Axonometric Drawings

Jacques Yves Cousteau & Keith Campbell

Jacques Yves Cousteau Quote: The sea, the great unifier, is man's only hope. Now, as never before, the old phrase has a literal meaning: we are all in the same boat.
Ref: http://www.brainyquote.com/quotes/quotes/j/jacquesyve204398.html




Keith Capbell Quote: Cloning may be good and it may be bad.
Jacques Yves Cousteau Quote: The sea, the great unifier, is man's only hope. Now, as never before, the old phrase has a literal meaning: we are all in the same boat.
Ref: http://www.brainyquote.com/quotes/quotes/j/jacquesyve204398.html

Alfred Nobel

Quote: Hope is nature's veil for hiding truth's nakedness.

Animation

Interior rendering

A useful link for Sketchup

http://download.sketchup.com/downloads/training/tutorials50/Sketchup%20Video%20Tutorials.html

Draft evolvement is still in progress

This image shows the relationship between the levels by 5 set of stairs

36 Textures

Evolvement of the draft

I designed more stairs as a connection element between all spaces

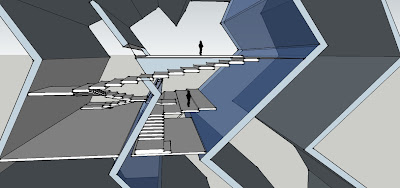

Adding stairs to the main draft

A part of below ground level can be seen through the glass ground

A set of stair to the one of the exibition spaces

Interior views of the draft
